Vertical roof metal carport
Vehicle, trailer, and equipment coverage with vertical roof panels
Vertical RoofOpen coverage
Vertical Roof CarportsExplore vertical roof carports
Elite Series · The Heavy-Duty One
Vertical roof carports that shed rain and debris.
Ridge-to-eave panels move water and loose debris off the roof, a strong fit for longer covers, RVs, and tree-lined sites. The Elite package pairs this roof with 12-gauge framing.
- Delivery & install included
- Same-day quotes, most days
- Weed to Bakersfield
Installed projects
See vertical roof coverage
Real project photos show the roof orientation, tall clearance, and open access that define this upgrade.

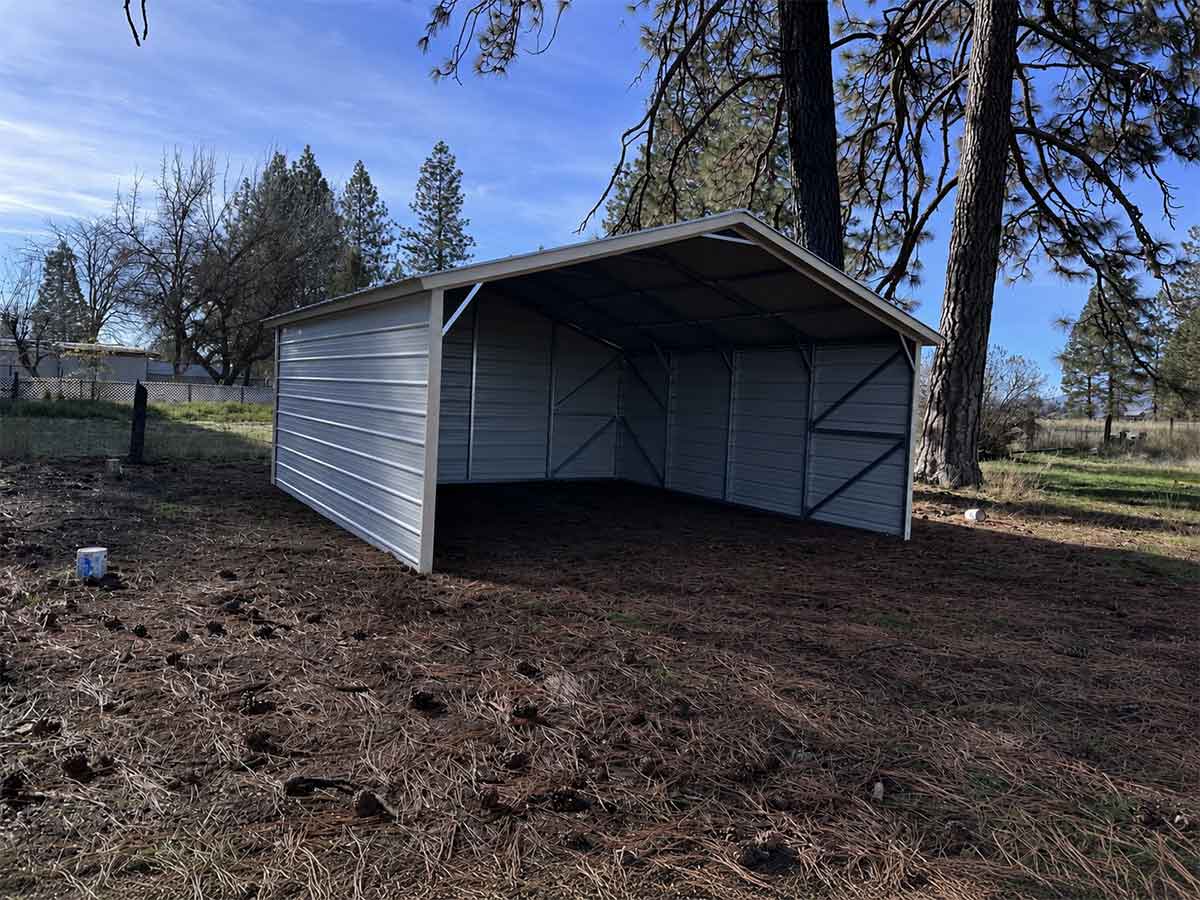

Vertical roof carport beside a driveway
Residential vehicle coverage beside an existing home
Vertical RoofOpen coverage
Vertical Roof CarportsExplore vertical roof carports
Vertical roof carport example
Open coverage where runoff and debris shedding matter
Vertical RoofOpen coverage
Vertical Roof CarportsExplore vertical roof carports
The performance roof for demanding sites
Vertical roof panels run from the ridge to the eave. Compare the product drawing, runoff plan, debris exposure, and any additional framing in the quote. Panel direction does not establish structural load capacity.
- Improved runoff path
- Better debris shedding
- Strong fit for RV and long-span use
- Often paired with heavier framing or engineering
What makes a vertical roof different
A vertical roof has the same peaked shape as a boxed-eave roof, but the panels are turned the other way. They run from the ridge straight down to the edge, so the ribs point the same direction water flows. Rain, leaves, and pine needles slide off instead of collecting along the panel ribs.
To turn the panels that way, the roof sits on extra steel supports called hat channels that run across the frame. That extra steel is part of why a vertical roof costs more than the other two.
It's the roof to pick for long covers, RVs, boats with towers, and anything parked under trees. In snow country it's often the better fit too, but the roof direction alone doesn't make a building snow-rated. The frame, bracing, anchors, and engineered plans for your address do that.
Pick this roof when
- Long covers and multi-vehicle runs
- RVs, trailers, and tall boats
- Sites under trees, with leaves or needles
- Snow and heavy-rain areas (with the right frame and plans)
- Roof shape
- Vertical panels run from ridge to eave over steel hat-channel supports, creating a direct path for roof runoff and loose debris.
- Panel direction
- Vertical: panels run ridge to eave, over hat-channel supports
- Framing
- 12-gauge framing in this configuration; gauge alone does not establish a site load rating
- Popular sizes
- 20 × 24 × 8 · 18 × 38 × 12 · 18 × 40 × 14 · 30 × 40 × 10
- Example price from
- $5,911 for a saved example; your quote depends on size, site, and options
Start with what you need to protect
Measure the widest vehicle or equipment first, then add clearance for doors, mirrors, walkways, turning access, and future use.
- RVs and motorhomes
- Longer structures
- Snow and tree debris
Compare more example builds
These are planning examples. Final pricing varies by location, size, roof style, gauge, permits, site conditions, and selected options.
Carport
30' x 40' x 10'
Example price
$16,302
Elite Series · Vertical · 12-Gauge · Open sides
Inspect this build| Building example | What this build shows | Example price |
|---|---|---|
| Carport18' x 24' x 10'A vertical roof carport example suited for customers who want a stronger runoff pattern and a more finished roof profile. | Vertical14-GaugeOpen sides | $7,156 Inspect build |
| RV Carport18' x 38' x 12'An 18x38 vertical roof RV carport example with open ends, tall clearance, and six-foot side panels for added weather protection. | Vertical14-GaugeOpen sides | $10,929 Inspect build |
| Carport30' x 40' x 10'A larger vertical carport example for customers who need broader open coverage without a full enclosure. | Elite SeriesVertical12-GaugeOpen sides | $16,302 Inspect build |
A clear starting package
- Delivery and professional installation are included in the quoted price for an installation-ready site.
- Vertical panels with a raised ridge cap for improved runoff
- 12-gauge and 14-gauge framing options based on size and site needs
- Extra height, side coverage, anchors, and other options available by configuration
- Engineering, financing, and warranty details confirmed under the selected terms
Snow country
Building where it snows? Here’s how pricing works.
Snow-rated buildings are priced per address. We get exact material pricing, an engineer reviews the design for your site, and the price can change after that review.
More snow means heavier framing, closer trusses, more bracing, and upgraded anchors. That steel is where the cost goes, so we’ll be straight with you about the number before you commit.
Get a snow-rated quoteSnow load
30 lbs or less
Standard pricing. Extra bracing may still be needed if your city or county requires it for the permit.
Snow load
31–60 lbs
From about 40 lbs you may need extra trusses, so the price starts to rise.
Snow load
60–90 lbs
This is where the price really climbs.
Snow load
90 lbs and up
Plan on roughly the price of two to three standard carports in one.
The details that affect your project
Still comparing options?
Send us the vehicle or equipment dimensions, ZIP code, and surface. We can point you toward a practical starting size.
Ask for a recommendationWhen is a vertical roof worth the extra cost?
Choose vertical when its panel direction, appearance, runoff planning, or debris-management features fit the project and quoted cost. Roof style alone does not establish wind or snow capacity.
How does a vertical roof differ from standard and horizontal?
Standard and horizontal panels run along the roof length. Vertical panels run from ridge to eave. Compare the product drawing and runoff plan; roof panel direction does not establish wind or snow capacity.
Is vertical a good choice for an RV?
Often, yes. RV projects need height and length planning for AC units, antennas, slide-outs, mirrors, and entry clearance. Confirm those dimensions before selecting the configuration.
Does example pricing include installation?
Example pricing reflects the saved configuration and its listed assumptions. Delivery and installation conditions, location, permits, anchoring, and site requirements are confirmed in the project quote.
Do I need a permit?
Permit requirements vary across Northern California by city or county, structure size, placement, foundation, enclosure, wind or snow loads, intended use, and HOA rules. Confirm the local requirements with the applicable building department before ordering or installation. The customer is responsible for permit applications, permit fees, zoning and setback confirmation, and coordinating required inspections with the applicable city or county. Engineering is conditional, not included with every building. If a city, county, HOA, or inspector requests it, Norcal Carports may coordinate available engineering information or a quote from an outside engineering firm.
Ready to price your site?
Send the size, installation ZIP code, surface, and site conditions. We will review the project details and confirm the next step.
